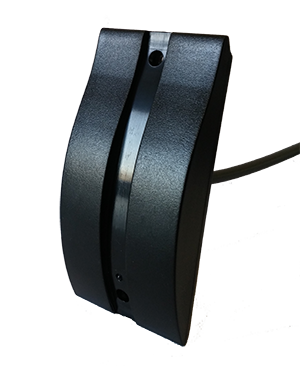

HF Reader
A rugged RFID Reader for every needs
HF Reader is a 13.56MHz RFID Reader well suited for harsh environments and external applications.
Its printed circuit board is fully protected by specific insulation resin and and covered with strong plastic case spercial for panel or wall mounting.
HF Reader is supplied with multiconductor cable with power supply and data signals.
Various models available featuring different working modes, interfaces and power supply range.
Specification:
| Interface | TTL | RS-232 | RS-485 | USB |
| Product Code | ||||
| standard MIFARE | IO 121.13X0 | IO 121.11XX | IO 121.1211 | IO 121.1000 |
| standard ICODE | IO 122.13X0 | IO 122.11XX | IO 122.1211 | IO 122.1000 |
| Operating Frequency | 13.56MHz | 13.56MHz | 13.56MHz | 13.56MHz |
| Function | Read | Read/Write | Read/Write | Read/Write |
| Work Mode | Spontaneous | Polling / Spontaneous | Polling | Polling |
| Power Supply | 5VDC | 5VDC / 12VDC | 12VDC | 5VDC |
| Operating Temperature | -10°C ÷ +50°C | -10°C ÷ +60°C | -10°C ÷ +60°C | -10°C ÷ +60°C |
| Dimensions(LxWxH mm) | 110 x 80 x 26 | 110 x 80 x 26 | 110 x 80 x 26 | 110 x 80 x 26 |
| Protection | IP66 | IP66 | IP66 | IP66 |
